PERI UP Flex Weather Protection Roof: Standard components are the basis for variable roof shapes.

PERI UP Flex Weather Protection Roof

Control uncertainty and keep working safely with the lattice girder system ideal for short and large spans

The PERI UP Flex Weather Protection Roof is a temporary and protective roofing facility designed to increase the productivity of your project.  Regardless of strong direct sunlight, or driving rain, wind and snow, the protection system will keep workers and operations productive and on programme.

As part of the PERI UP Scaffold Kit, the system is simple to install and intuitive to operate.  For those already owning PERI UP assets, these can be utilised as part of the solution, providing a lower requirement to invest in new parts.  The system is also available as a rental option.

The system is often used for roof refurbishment, extension work, bridge and motorway construction or at jobsites during hot summers and colder winter months. LGS is designed to accommodate large spans and high loads with a high level of safety during assembly, dismantling and use.  For extra ease of use on site, it can be designed as a movable system.



PERI UP Flex Weather Protection Roof in action

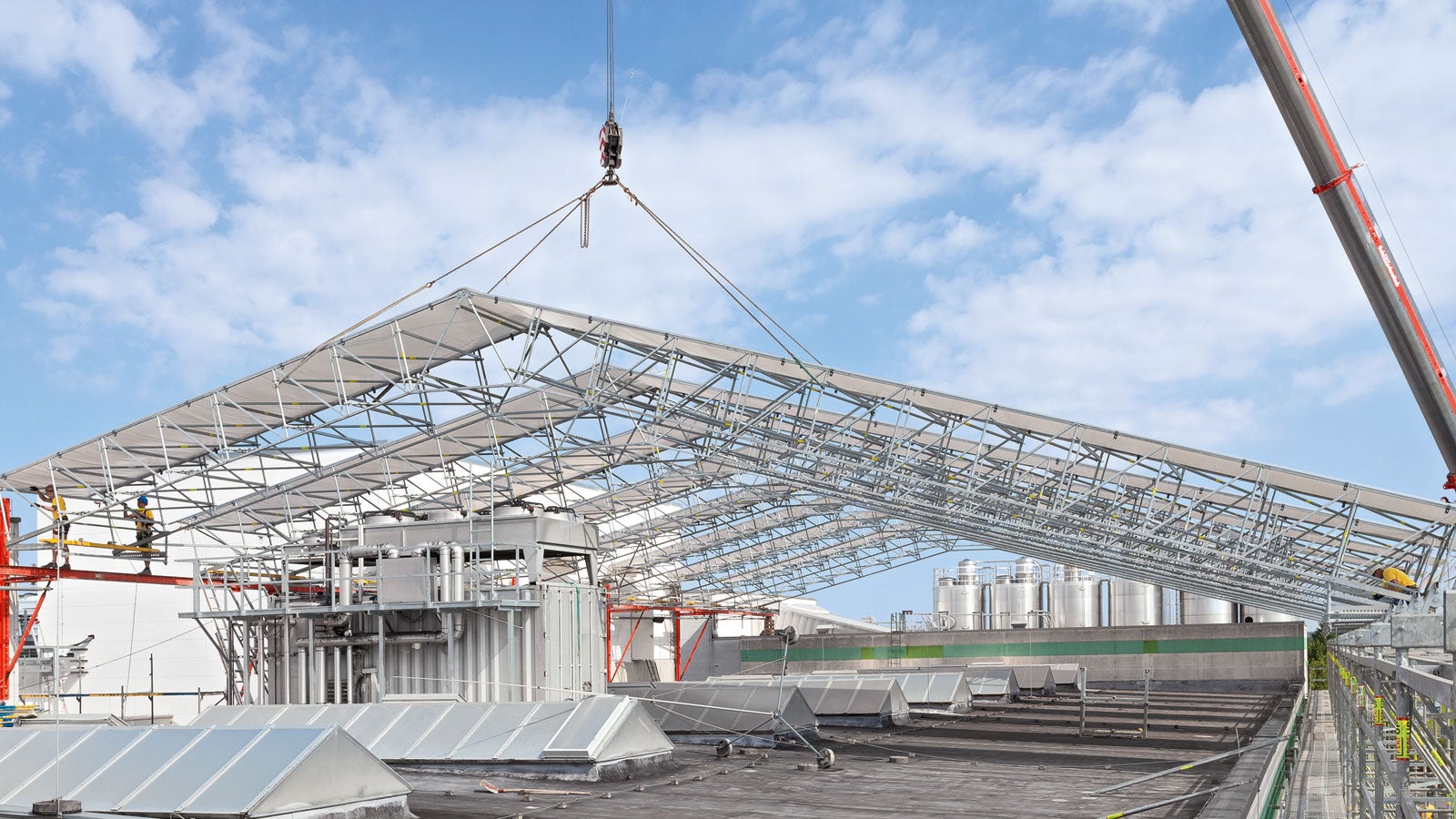

  • PERI UP Flex Weather Protection Roof LGS: The crane lifts the complete segment quickly and safely into position after pre-assembly on the ground.
    Fast assembly

    Easy pre-assembly on the ground, and then raised in to position as a complete girder package by crane

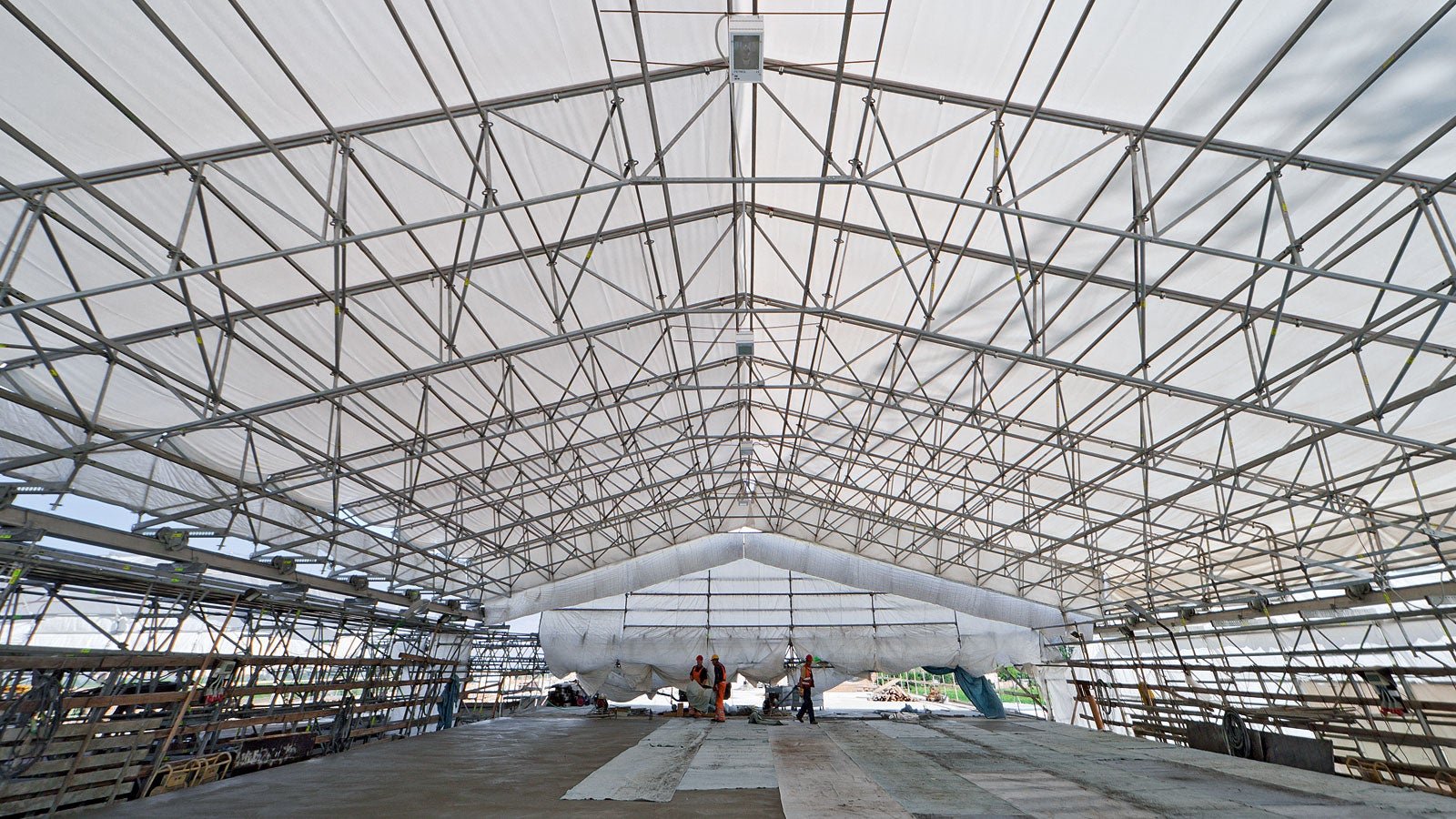

  • PERI UP Flex Weather Protection Roof: Reliable protection against the effects of the weather increase the efficiency and the quality of the site results.
    Highly flexible

    The system can be designed to suit nearly all inclinations and geometries

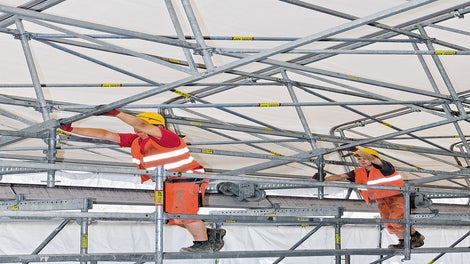

  • The roof elements can be moved in the longitudinal direction by means of wheels so that, for example, materials can be lifted in by crane.
    Built in features to keep workers safe

    Integrated walkways ensure safe working conditions on the roof segments, often without requiring further working at height personal protective equipment

Product Data Sheet

Technical specifications
Scaffold type
Weather Protection Roof
Type of use
Protective scaffolding
Construction type
Binder
Load class
load class 1 to 4 (0.75 kN/m² - 3.00 kN/m²); Load class 1 to 6 (0.75 kN/m² - 6.00 kN/m²)
Body heights
150 cm
Type of pavement
Steel
Structure principle
Pre-assembly on the ground
Norm
DIN EN 12810 and 12811
span
Up to 45 meters, up to 35 meters without undervoltage
Technical specifications
Scaffold type
Weather Protection Roof
Type of use
Protective scaffolding
Construction type
Binder
Load class
load class 1 to 4 (0.75 kN/m² - 3.00 kN/m²); Load class 1 to 6 (0.75 kN/m² - 6.00 kN/m²)
Body heights
150 cm
Type of pavement
Steel
Structure principle
Pre-assembly on the ground
Norm
DIN EN 12810 and 12811
span
Up to 45 meters, up to 35 meters without undervoltage
Standard applications
Compatible with
PERI UP scaffolding construction kit, VARIOKIT engineering construction kit
Standard applications
Compatible with
PERI UP scaffolding construction kit, VARIOKIT engineering construction kit
Show More
Show Less

Additional information

PERI UP Flex Weather Protection Roof: Standard components are the basis for variable roof shapes.
PERI UP Flex Weather Protection Roof: Standard components are the basis for variable roof shapes.

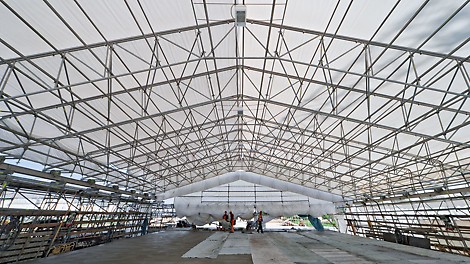

PERI UP Flex Weather Protection Roof: Reliable protection against the effects of the weather increase the efficiency and the quality of the site results.
PERI UP Flex Weather Protection Roof: Reliable protection against the effects of the weather increase the efficiency and the quality of the site results.

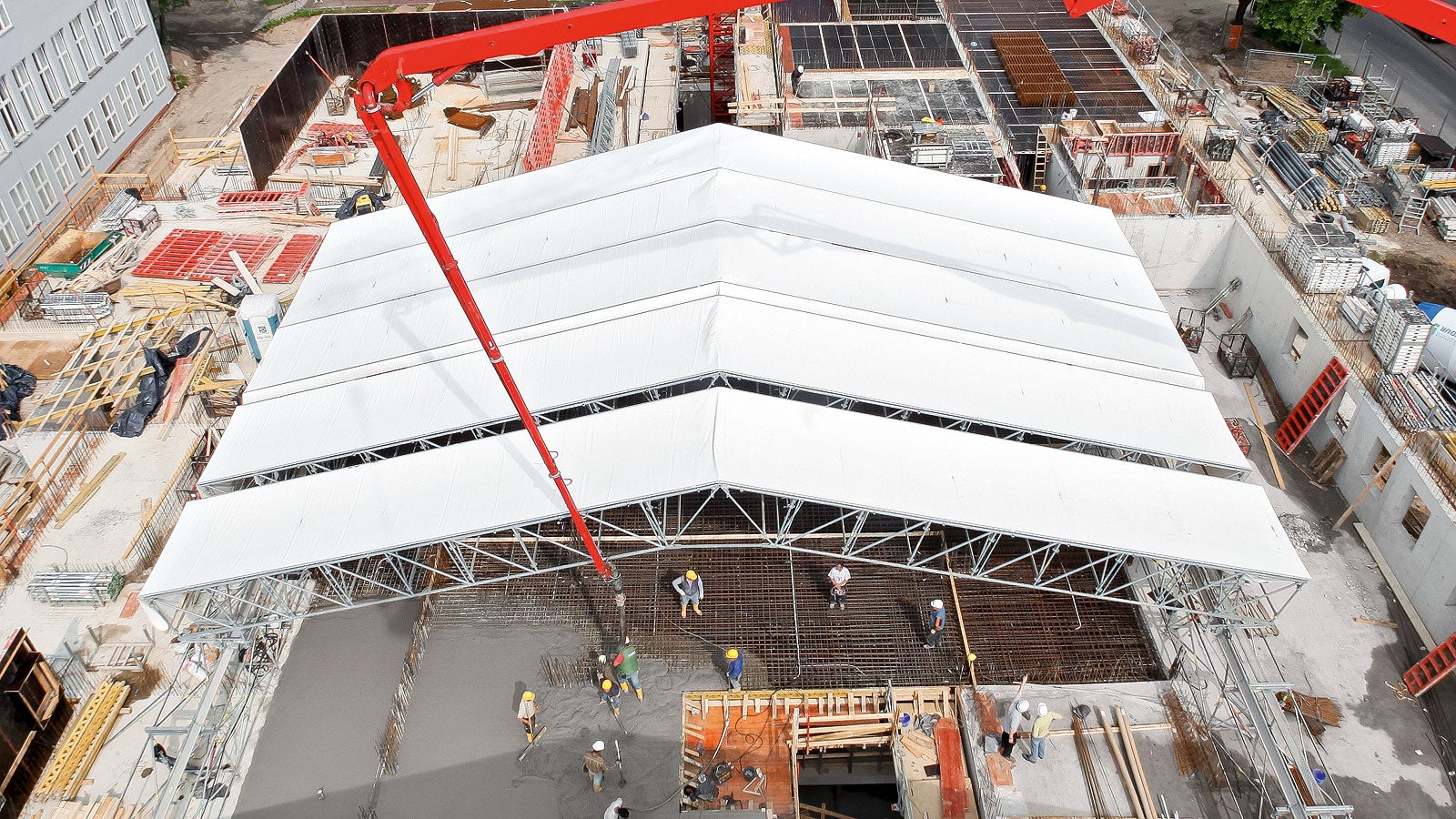

PERI UP Flex Weather Protection Roof: The assembly of the roof in single movable girder segments allows the easy opening of the roof, e.g. for the delivery of materials.
PERI UP Flex Weather Protection Roof: The assembly of the roof in single movable girder segments allows the easy opening of the roof, e.g. for the delivery of materials.

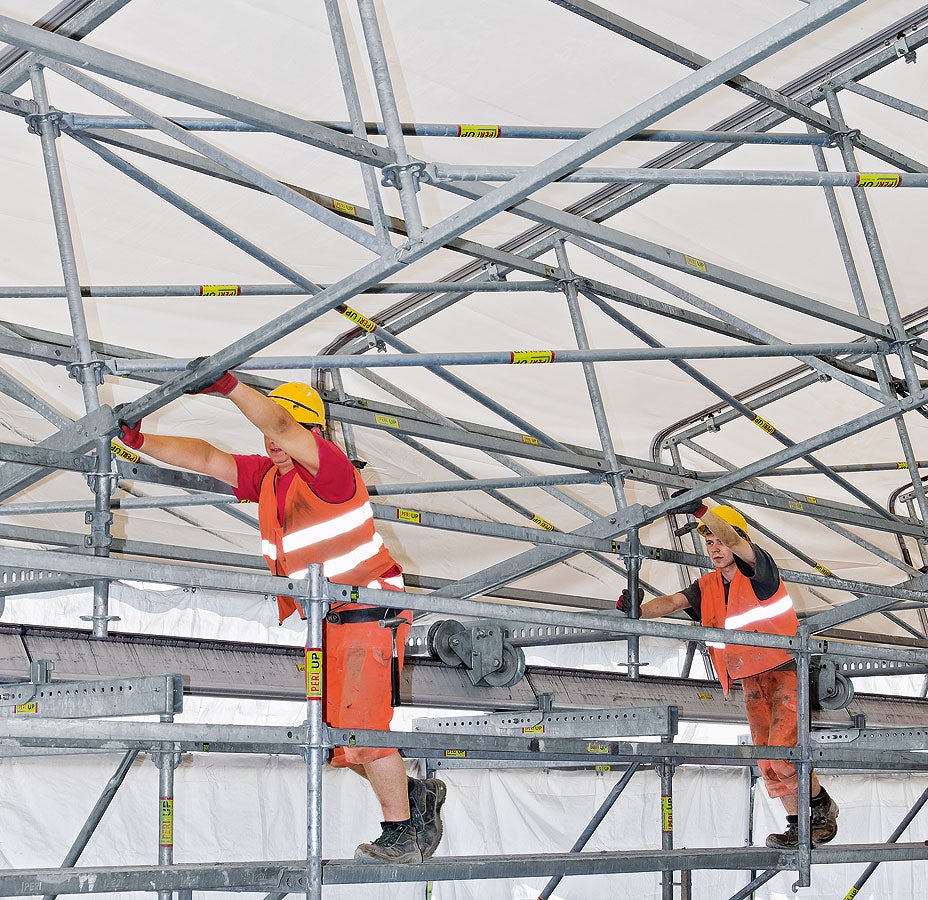

The roof elements can be moved in the longitudinal direction by means of wheels so that, for example, materials can be lifted in by crane.
The roof elements can be moved in the longitudinal direction by means of wheels so that, for example, materials can be lifted in by crane.
PERI UP Flex Weather Protection Roof LGS: The crane lifts the complete segment quickly and safely into position after pre-assembly on the ground.
PERI UP Flex Weather Protection Roof LGS: The crane lifts the complete segment quickly and safely into position after pre-assembly on the ground.
LGS standard components form the basis for all roof shapes and types
Reliable protection against the effects of weather increase construction efficiency, quality and safety
The assembly of the roof in single movable girder segments allows the easy opening of the roof, e.g. for the delivery of materials.
The roof elements can be adapted to be moved by wheels to easily position around site or open the structure temporarily to enable cranes to lift in materials
The crane lifts the complete segment quickly and safely into position after pre-assembly on the ground.
