HANDSET Alpha Panel Formwork

HANDSET Alpha is the smart solution for universal wall and column applications.
All panels are multi-panels, offering a high level of flexibility in wall and column applications, while enabling high material utilization.

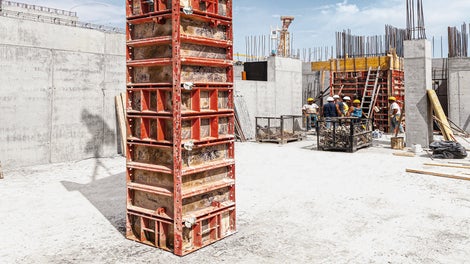

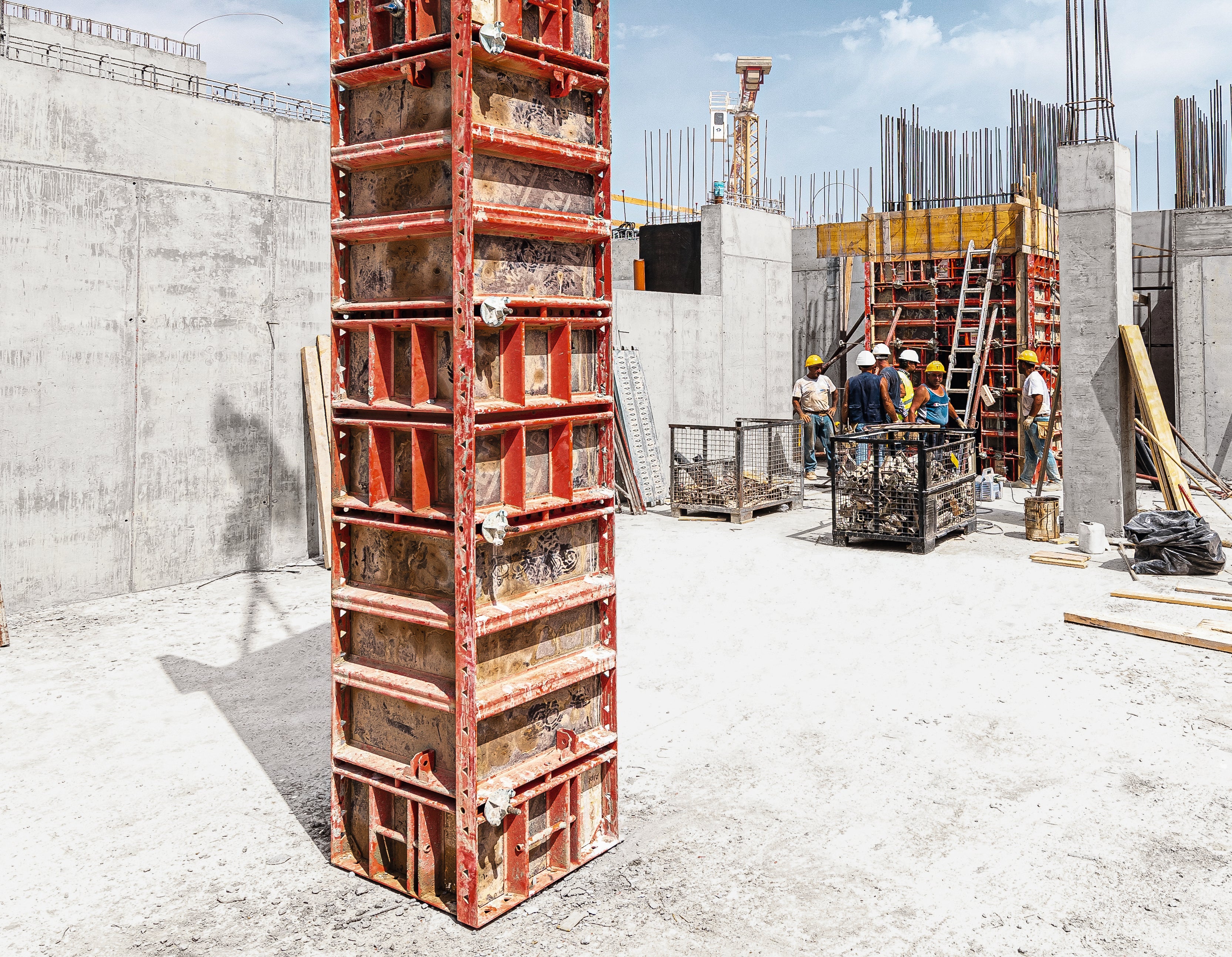

Flexible column sizes, ranging from 150 mm x 150 mm to 900 mm x 900 mm and up to 75 kN/m² concrete pressure, can be formed without extra tie rod.
The Alignment Clamp is the way to connect panels, while aligning them at the same time.
The wedge clip is the easy and cost-effective method to connect panels.

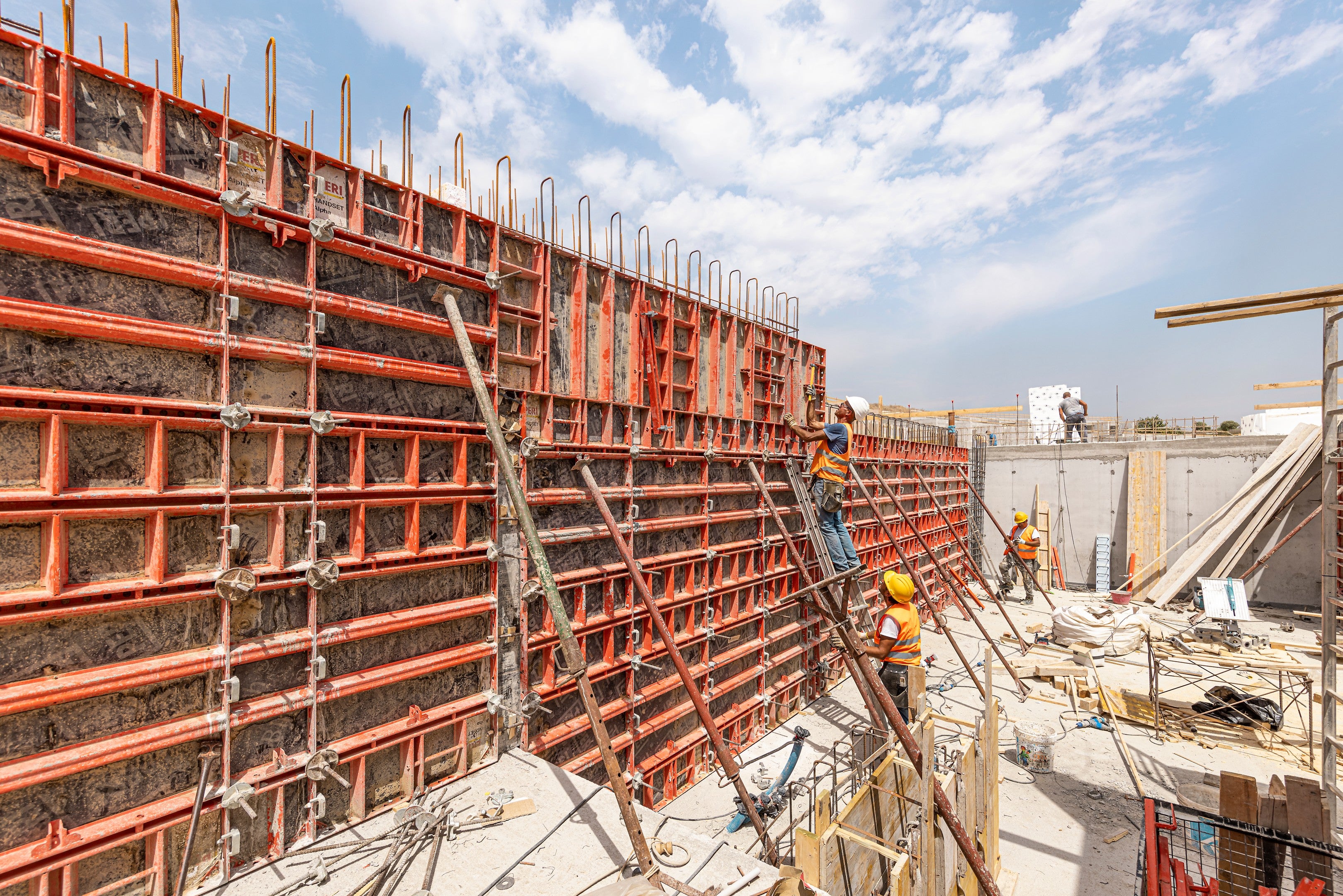

HANDSET Alpha offers a high degree of application flexibility. The panels can be used for a wide range of construction projects.
The Scaffold Tube Holder is a straightforward way to align the panels, when no Alignment Clamp is used.
1
/
7

Overview

The robust and economical formwork system for crane-independent applications


HANDSET Alpha is a robust entry-level formwork system for walls, foundations and columns. The system comes with a competitive price and very high performance and consists of a low number of sophisticated components and multifunctional panels that make handling intuitive. This streamlined, integrated portfolio keeps the need for on-site training to a minimum and saves valuable time and costs. Only two people are needed to assemble the system. A crane is not required. The high quality steel and powder-coated panels make HANDSET ­Alpha particularly durable and reduce maintenance costs.

Your advantages at a glance:

Particularly high versatility
due to its suitability for walls, columns and foundations

Simplified material management
due to integrated brace connectors and multifunctional panels

Lean and efficient portfolio
with only three panel heights and widths in each case, with inside and outside corners

Advantages

  • Ergonomic handling: only two people and no crane needed
  • Highest flexibility through multi-purpose panels
  • Less errors and lost material thanks to intuitive handling and few components
  • Reduced repair costs: robust design and high concrete pressure
  • Efficient work flow and less timber wastage thanks to reusable high-quality panels

Technical details

  • Robust panels with a weight of 34.5 kg/m²
  • A small portfolio consisting of only a few elements differing in terms of height (3.00 m/1.50 m/1.20 m) and width (0.90 m/0.60 m/0.30 m)
  • All of the panels can be used as multi-panels
  • Max. permissible fresh concrete pressure: 60 kN/m² (for walls)
  • Max. permissible fresh concrete pressure: 60 kN/m² (for columns up to 900 mm x 900 mm)
  • Max. permissible fresh concrete pressure: 75 kN/m² (for columns up to 600 mm x 600 mm)
  • Columns ranging from 150 mm x 150 mm up to 900 mm x 900 mm without tie rods
  • Easy cleaning due to inclined profiles in combination with high-quality powder-coated frames
